ADAM

Mail Logging

A:\Users\Philip\AppData\Local\Microsoft\Windows\INetCache\Content.Word\big_warning_11.pngThis feature is no longer actively supported and no further development is being done in this regard. It negatively impacts the ADAM database’s performance considerably and has significant concerns in terms of privacy.

The mail logging feature allows ADAM to monitor a “catch-all” mailbox on your Exchange server and, if it matches any of the addresses to families in ADAM, it will record those emails on their profile.

While this is useful for monitoring communication sent externally to ADAM, it can have the unintended consequence, where staff members are also parents, of logging all their email communication - very little of which will have to do with their children.

ADAM scans the mail every five minutes and processes a batch of mail. Thus most mails should be archived by ADAM within 5 to 10 minutes of being sent.

Note that ADAM will not store attachments.

Enabling and Disabling Mail Logging for Families

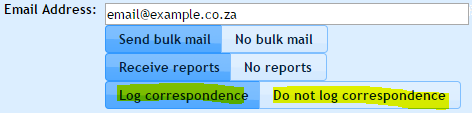

Edit the family concerned and, next to each of their email addresses choose whether to enable or disable mail logging for that address.

Note that with staff, it may be preferable to disable both mother and father even if only one is an employee of the school. This is because the server may intercept personal communication from one of the parties and store it.

Configuring Your Mail Server

The goal here is to have your mail server place a duplicate copy of every mail that it sends or receives into a mailbox that can be accessed by ADAM using a POP3 connection.

The instructions are different for each mail server. You will need to enquire with your mail server’s providers on how to achieve this. Here are instructions for Microsoft Exchange 2013 to set up this process, called “Journaling”.

You do not need to worry about space issues on your mail server since ADAM will delete the mails once they are processed.

Setting up ADAM

Once configured, confirm that you have POP3 access to the mailbox concerned. Make a note of the username and password, as well as the IP address of the server concerned (which may be different from your outgoing SMTP server, in some instances).

Navigate in ADAM to “Administration >> Site Administration >> Edit site settings”.

When in Site Settings, click on the “Mail Logging” tab.

Click on the Save settings button.

ADAM will now check the mailbox every 5 minutes and process mail that is waiting there. If there are more messages waiting than the maximum allows, then ADAM will process those mails on its next run.

Note that 90 mails every 5 minutes, gives ADAM the capacity to process a maximum of 25,000 emails per day. This, in practice, is what most large schools send in a month. A limit of 20 per 5 minutes reduces this to about 7000 per day which seems to be adequate even for the largest of schools.

If the cron process stops running, then the mails will be stored in the mail box on the server, waiting for ADAM to process them. In these cases, it might be necessary to increase the number of messages that can be processed at once to work through the backlog of unchecked mail. ADAM will, however, keep chipping away at the pile until there are none left. In such instances, older messages are generally processed first, so if there is a backlog, it may take some time for newly sent messages to be reflected in ADAM.

Privileges to View Logged Mail

Privileges to view logged mail should be given sparingly since mail may contain sensitive information. In the privilege groups, the following privileges, found under the “Family Admin” tab, are relevant:
